Avantec Dashboard Usage

Default State

• Dashboard bar:

  • : Click here to skip to root State. Since default State is root state, click here and there is no response.
  • : Click the two ICONS in the upper left corner to display the page in full screen.
  • : Edit timewindow.

• Thermostats widget:

  • Field:

    • Entity name, Entity type: device name, type.
    • Model, Room temp, Unit: see TA65-FC_Control State.

  • State Operate:

    • : skip to TA65-FC_Control State。
    • : skip to TA65-FC_Program State。
    • : skip to TA65-FC_Settings State。
    • : skip to TA65-FC_Admin State。

TA65-FC States

TA65-FC_Control State

• Dashboard bar:

  See Default State.

• Widgets:

  Widget	Description
  Room Temp	room temperature
  Change Over Sensor Temp	change over sensor temperature
  Temp Unit	temperature unit, “°C” or “°F”
  Fan Status	“Off”, “Low”, “Med” or “High”
  PRG Enabled	program enabled, true or false
  PRG Next Time	next program time
  PRG Next SP	next program set point
  Control Mode	“Off” or “On”
  Fan Mode	“Auto”, “Low”, “Med” or “High”
  Set Point	If you adjust set point, override status is YES(true)
  Override Status	“YES”(true) or “NO”(false)
  Temperature history	Room Temp & Change Over Sensor Temp history. Click to edit this timewindow. See Default State

TA65-FC_Program State

• Dashboard bar:

  See Default State.

• Widgets:

  • Programe Mode:

  Program Mode	Description
  NO PROGRAM	Program disabled
  1 DAY (MON)	Using 4 set points of Monday every day
  1+5+1 (SUN+MON+SAT)	Using 4 set points of Monday from Monday to Friday
  7 DAYS (SUN~SAT)	Using 4 set points every day

  • Set Points:

  Widget	Description
  prgSpTime00 ~ prgSpTime27	time, hour:minute
  prgSpValue00 ~ prgSpValue27	set point value, temperature

TA65-FC_Settings State

• Dashboard bar:

  See Default State.

• Widgets:

  Widget	Description
  Time Format	“12 Hours” or “24 Hours”
  Timezone	See Add shared attributes of new device
  NTP Server	SNTP protocol server URL, eg: pool.ntp.org, 0.pool.ntp.org, 1.pool.ntp.org, time.nist.gov, … see Add shared attributes of new device
  Sync Time	If you change Timezone or NTP Server, you have to do it
  Temp Unit	“°C” or “°F”. Reboot the device to take effect
  Change Over Mode	“Heat”, “Cool” or “Auto”
  Force Ventialation	Used in automatic Fan Mode
  Temp Offset(Internal Sensor)	Internal sensor temperture offset
  Change Over Temp Heating	Change over temperature heating
  Change Over Temp Cooling	Change over temperature cooling
  Switching Diff Heating	Switching differential heating
  Switching Diff Cooling	Switching differential cooling
  WI-FI RSSI	Wi-Fi Received Signal Strength Indicator

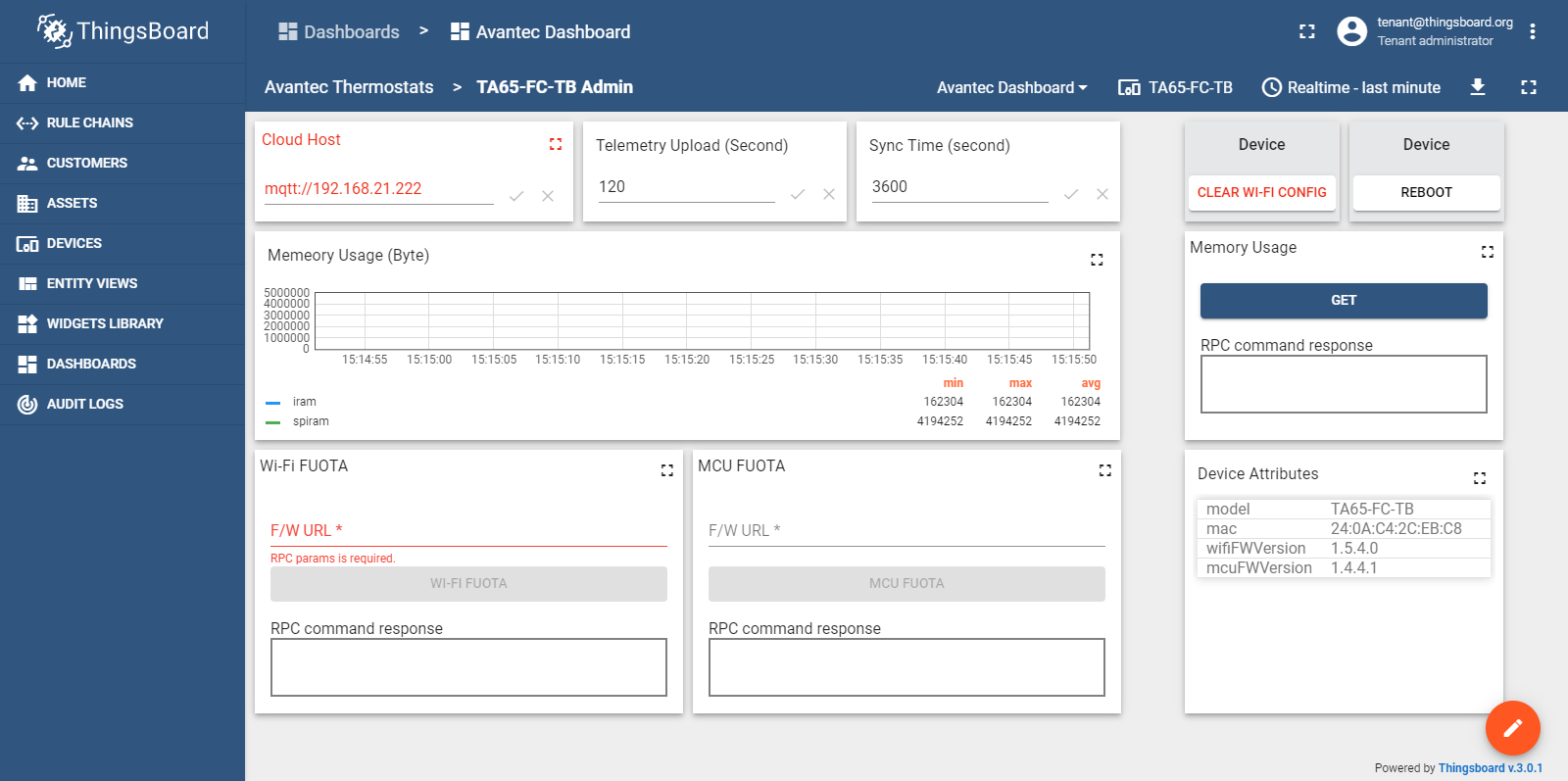

TA65-FC_Admin State

• Dashboard bar:

  See Default State.

• Widgets:

  Widget	Description
  Cloud Host	This ThingsBoard Server’s MQTT URL. It must begin with “MQTT ://”, such as mqtt://192.168.21.222 Please replace 192.168.21.222 with your value. See Add shared attributes of new device
  Telemetry Upload	Telemetry per uploadFreq seconds See Add shared attributes of new device
  Sync Time	Sync time per syncTimeFreq seconds See Add shared attributes of new device
  Memory Usage	byte, iram: internal RAM, spiram: external SPI RAM
  Wi-Fi FUOTA	First input a HTTP URL of Wi-Fi module F/W, then click this button
  MCU FUOTA	First input a HTTP URL of main MCU F/W, then click this button
  Clear Wi-Fi Config	Clear device’s Wi-Fi configuration
  Reboot	Reboot device
  Device attributes	Device model, device mac, device Wi-Fi Module F/W version device Main MCU F/W version
